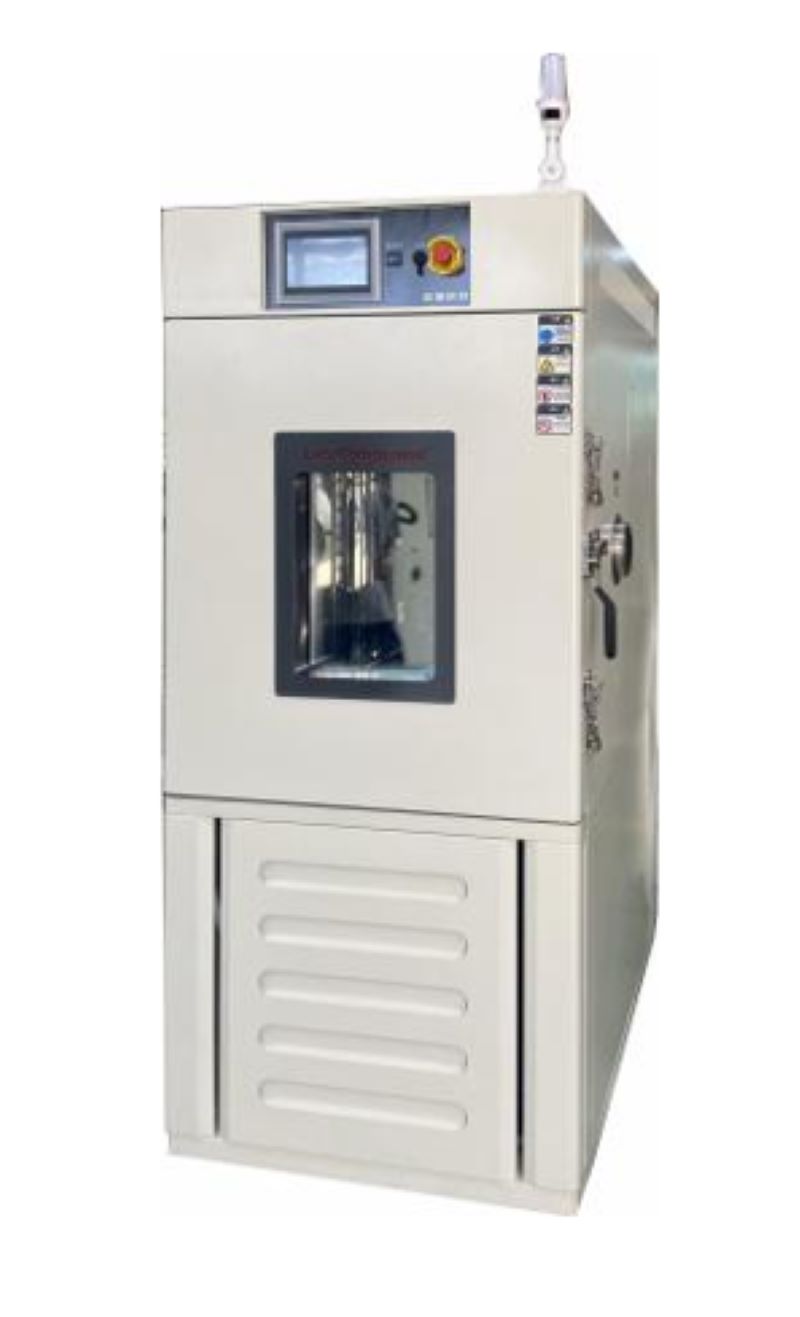

Battery Special Test Chamber

Introduction to the test chamber of battery special test chamber:

High and low temperature (wet and hot) environment test for lithium battery cells, modules and electric vehicle power battery pack test; It is also used for high and low temperature (wet and hot) environmental tests of lithium battery cells and modules related to energy storage industry.

Main parameters of battery special test chamber:

Studio size: 0.3m ~ 1.5m³(other sizes can be customized)

Temperature range: -40 ℃ ~ +150℃

Humidity range: 20% ~ 98%

Heating rate: 1℃ -5 ℃/min (The whole process)

Cooling rate: 1℃ -5 ℃/min (The whole process)

Temperature fluctuation: ±0.5

Temperature uniformity: 2℃

Temperature deviation: ±2℃

Humidity deviation: +2 ~ -3% (> 75%RH), ± 5% (≤ 75%RH)
