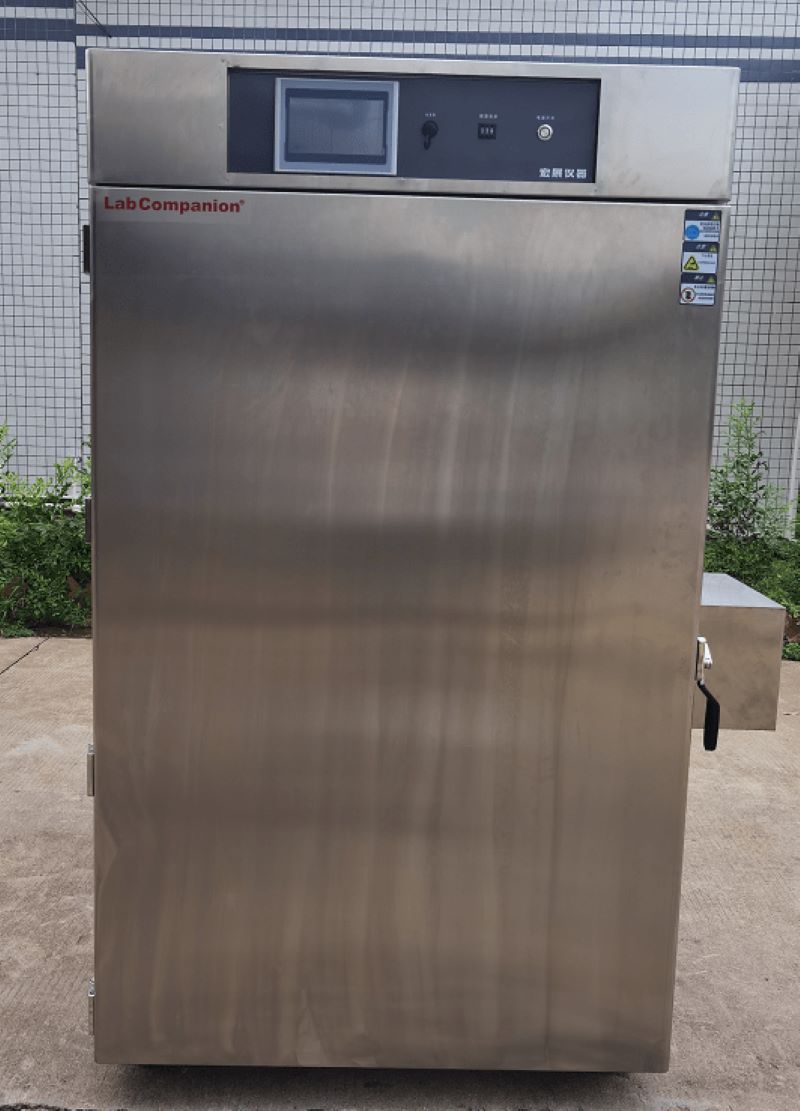

Clean Dust-free Oven
/ /Clean Dust-free Oven
Clean oven is also known as dust-free oven, mainly using the air filter to purify the environment and avoid fine particles in the air into the chamber. The air inside the chamber is closed and self-circulating, which is repeatedly filtered by the 100-class high temperature and high efficiency air filter, so that the working room is in a dust-free state. The dust-free oven is suitable for pre-treatment baking of silicon wafer, gallium arsenide, lithium niobate, glass and other materials before gluing, hard film baking after gluing and high temperature baking after developing in semiconductor manufacturing. It is also suitable for electronic liquid crystal display, LCD, CMOS, IS, medicine, laboratory and other production and scientific research departments; In addition, the dust-free industrial oven can be used for drying, heat treatment, aging and other high temperature tests of non-volatile and non-flammable and explosive items.
Features of dust-free oven:
1. Structure: the structure of dust-free oven is reasonable, assembled by the box part, the electrical control cabinet, the electric heating and the air duct circulation system.
2, Sealing design: surrounded by argon welding, using high temperature silicone rubber dust-free sealing strip heat insulation, to ensure tightness and cleanliness;
3, External dust treatment: the external material is SPCC steel plate after powder spraying plastic, wear-resistant dust and slag;
4, High efficiency filter: HEPA filter structure clean room, 99.99% effective filtration, cleanliness reached grade 100;
5, Energy saving: insulation material for high-density fiber, heat preservation and energy saving;
6, Layered structure design: the height of the internal chamber layer can be adjusted and freely taken out;
7, Temperature control instrument: automatic control of temperature, constant temperature and time control, setting with over temperature automatic power outage and alarm circuit for reliable control and safe use.
8, Electrical accessories: all use the first-line brand, PID calculus temperature control system and overtemperature protection device, intelligent constant temperature, small temperature difference, suitable for different products of long and short baking.
Product parameters of dust-free oven:
1, Temperature range: from normal temperature to 250℃, constant temperature adjustable
2, External size: H1660*W770*D920mm; internal size: H900*W600*D600mm
3, Heating speed: from room temperature to 200℃ in about 30 minutes
4, Insulation performance: the outer wall temperature of the chamber does not exceed 45℃ (when the temperature inside the chamber reaches 200℃)
5, Temperature control accuracy: ±1℃
6, Temperature uniformity: ±3℃%
7, The use of power supply: 380V/50HZ (3 ∮ 5 wire)
